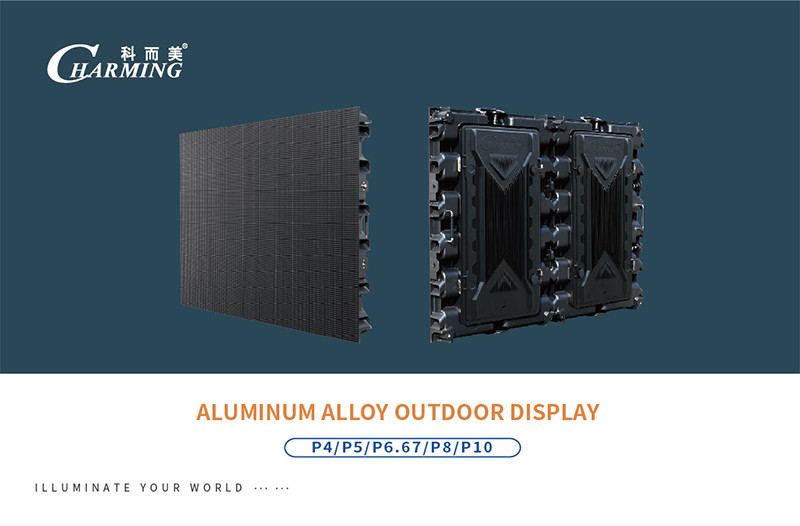

P5, P8 High Brightness 3d Naked Eye Gaint Screen Outdoor Led Video Wall
Product Description
-
1. Outdoor LED displays use high-brightness LEDs (light-emitting diodes) that can withstand varying environmental conditions like sunlight, rain, snow, etc. This allows the displays to be viewable even outdoors during the day.
-
-
2. Pitch/Pixel Density - Outdoor displays have a higher pixel density/pitch compared to indoor displays to ensure images and text remain sharp and legible from a distance in outdoor lighting conditions. Typical pixel pitches are around 5-8mm.
-
-
3. Longevity and Maintenance: Outdoor LED signage displays are designed for long-term use and have a longer lifespan compared to traditional signage solutions. However, regular maintenance, such as cleaning, inspection, and potential LED module replacements, is necessary to ensure optimal performance and longevity.
Technical Specifications
| Type Number | M4 | M5 | M8 |
| Pixel Pitch | 4.0mm | 5.0mm | 8.0mm |
| Pixel Density | 62500 Dot/㎡ | 40000 Dot/㎡ | 15625 Dot/㎡ |
| Scan Type | 1/10 Scan | 1/8 Scan | 1/5 Scan |
| Brightness | ≥5000CD/㎡ | ≥6000CD/㎡ | ≥5500CD/㎡ |
| Best Viewing Distance | ≥4M | ≥5M | ≥8M |
| Cabinet Resolution | 320x240 | 256x192 | 160x120 |
| Color | RGB |
| Refresh Rate(Hz) | 3840Hz / 1920Hz |
| Cabinet Size | 1280x960mm |
| Module Size | 320x160mm |
| Cabinet Max Power | 1200W |
| Viewing Angle | 130° |
| IP Rate | IP65 |
| Life Span | 100,000 h |

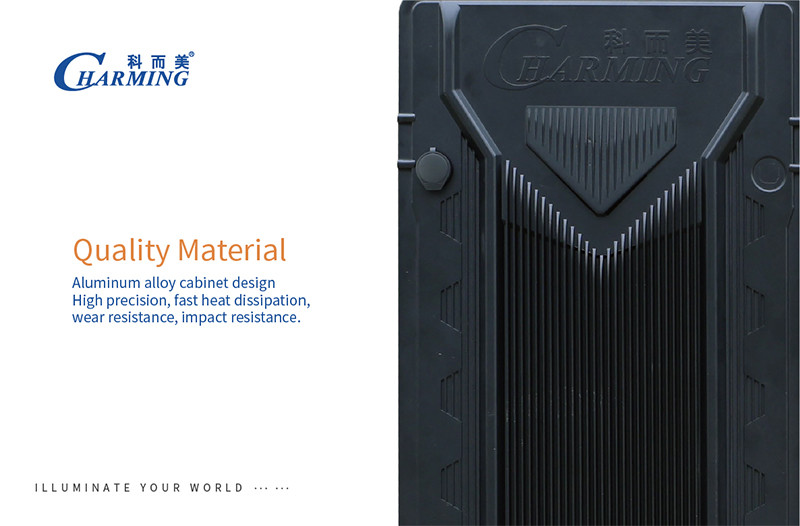

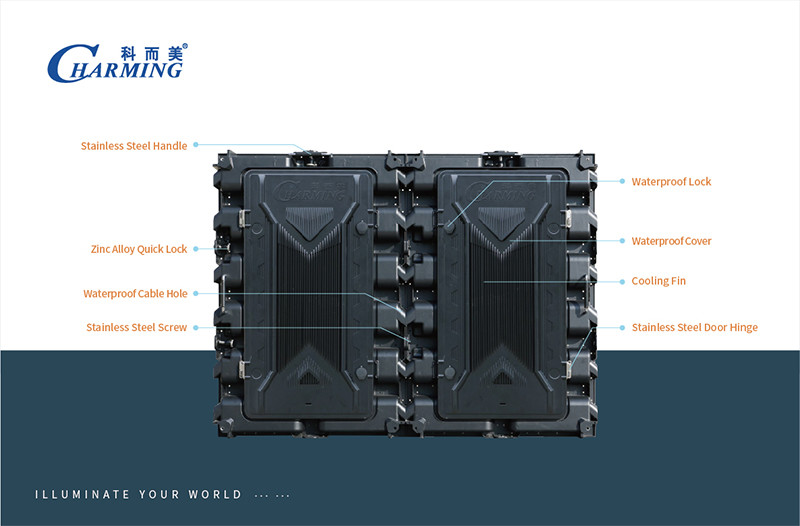

| Cabinet Material | Magnesium/Aluminum Alloy |

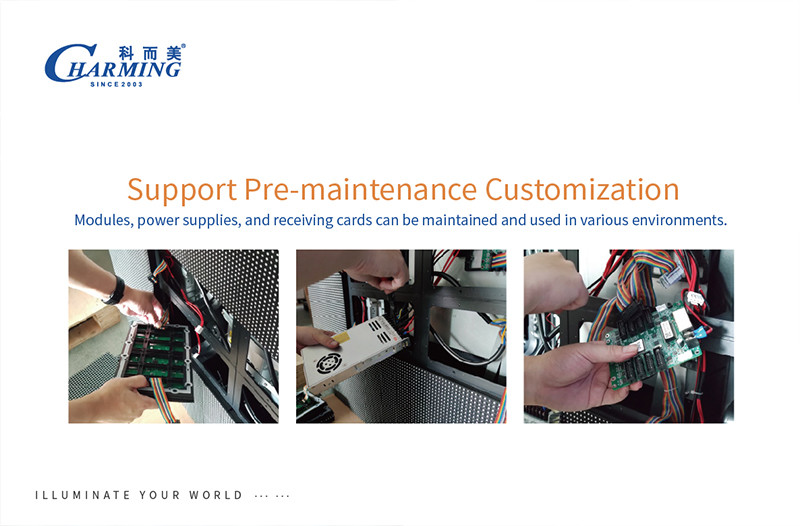

| Maintenance | Front/Back Service |
| Working Temperature | -30~60℃ |
| Working Humidity | 10%~90%RH |
| Life Span | ≥50000 Hours |
| Working Voltage | AC110V/220V, 50/60HZ |
| Weight | 38.8kg |

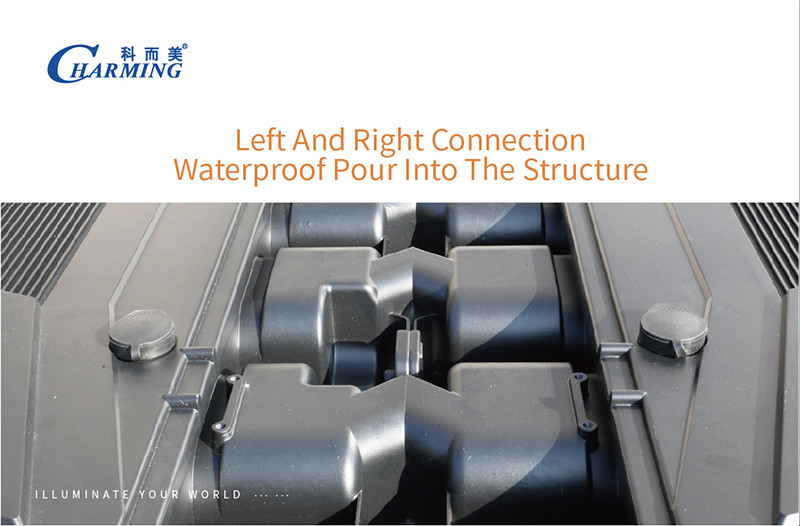

Detail Showing
Competitive advantages:
Outdoor Advertising: Outdoor LED screens are widely used for advertising purposes, displaying dynamic advertisements, promotional content, and brand messages in high-traffic areas.
It is specifically designed for outdoor environments and is often used for advertising, entertainment, sports events, and public gatherings.
Applications:
-
Commercial Advertising: Outdoor LED signage displays are widely used for advertising purposes, displaying commercial messages, promotions, and branding content to capture the attention of passersby.
-
Sports Venues and Stadiums: LED displays are commonly used in sports venues and stadiums to display live video feeds, scores, replays, and interactive content during sporting events.
About US
Charming Co., ltd has always been committed to technical innovation and service of global entertainmet lighting & LED.
In 2003, the world's first led display was brought into the field of the entertainmnet applications, and contiunes to lead the trend of LED's in this field. It has developed into the first brand of customer satisfaction in China's entertainment lighting Led.
It has obtained nearly 100 patents and obtained ISO9001, CE, CCC, CB, ROHS, SASO and other certifications.
Adhering to the corporate philosophy of " Charming Achieve Beauty ", we have an international standard full-automatic led display production line with a factory area of more than 10,000 sqm. We have provided quality products and services to customers in more than 150 countries and regions for 17 years.
What we offer to customer?
1. Indoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led TV Solution
- Video Conference System
- Immersive & 3D Led Display Solution
2. Outdoor Led Screen Solution
- Indoor Rental / Fixed Led Screen Solution
- All-in-one Led Advertising Sign
- All-in-one Commercial Led Display System
- Led Billboard Solution
3. Structure Design
- Wall Mounting Structure
- Rental Stack & Floor Stand Structure
- Electric Lifting & Rotating System
4. Customized Led Solution
- Spherical Led Screen Solution
- Cubic Led Screen Solution
- Right angle Led Screen Solution
- Led Video Floor Screen Solution
- Customzed Shape Led Screen Solution
