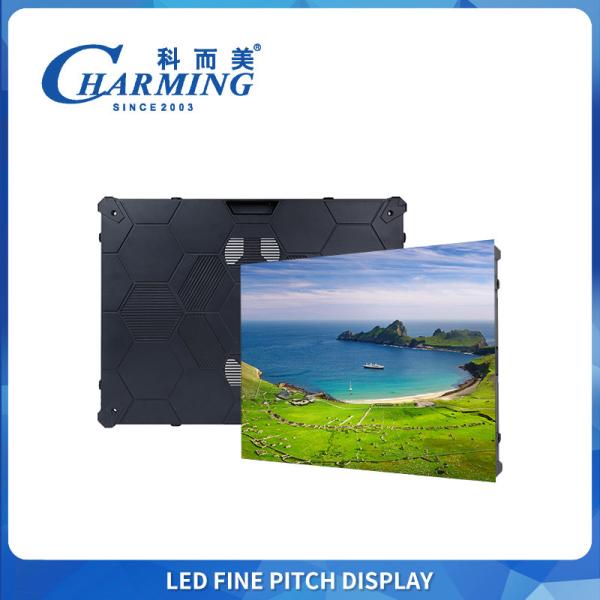

Indoor P2 Billboard Advertising Panels Led Screen Video Wall Display 3840HZ
Our Advantages
1. Utra light; 1 pcs only 2.42kg
2. Save installation cost and space; whole machine magnetic
suction installation
3. Reduce installations cables; cabinet only need power and signal cables
4. Utra thin, thickness only 52mm, after installation, the protruding
thickness of the box body is only 30.5mm
Technical Specification
| Type Number | S1.86 | S2.0 | S2.5 |
| Cabinet Siz | 320*480*52mm | 320*480*52mm | 320*480*52mm |
| Pixel Pitch | 1.86MM | 2.0MM | 2.5MM |
| Screen Brightness | >1000 CD/sqm | >1000 CD/sqm | >1000 CD/sqm |
| Module Size | 320*160mm | 320*160mm | 320*160mm |
| Screen Resolution | 172*258 | 160*240 | 128*190 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Cabinet Max Power | 80W | 80W | 80W |
| Refresh Rate | 3840hz |
| View Angle | 140° |
| Weight | 2.42KG |
| Material | plastic |
| Maintenance | Front Maintenance |
| Grey Level | 16 Bit |
| Temperature | -20°-60° |
| Life Span | ≥500000 |
| Voltage | AC110V/220V, 50HZ/60HZ |
Details Showing
The standard 16:9 size cabinet supports front/rear maintenance, back wireless design and seam adjustment.
It has realistic picture, high refresh rate, smaller area and larger resolution display.
Application
government and enterprise projects, exhibitions, cultural tourism, commercial real estate, outdoor advertising media and other fields. For example: supermarkets, restaurants, travel agencies, commercial plazas, cinemas, clubs, schools, hotels, hospitals, communities, commercial buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we will do our best to meet trends and needs.
